152mm Hole Diameter Surface Drilling Rig Solutions

Complete supporting solution of open-pit DTH drilling rigs tailored for hard rock blasting operations. This series is capable of drilling vertical, inclined and horizontal large-size blast holes.



Supplied in two types: integrated all-in-one rigs KT9C,and split separate rigs KG610, delivering flexible, high-efficiency rock drilling performance for surface mines and quarries.

Get a Quote Send E-mail

0086 18595738083

Products

WE WILL CONTACT YOU WITHIN 24 HOURS

Option 1

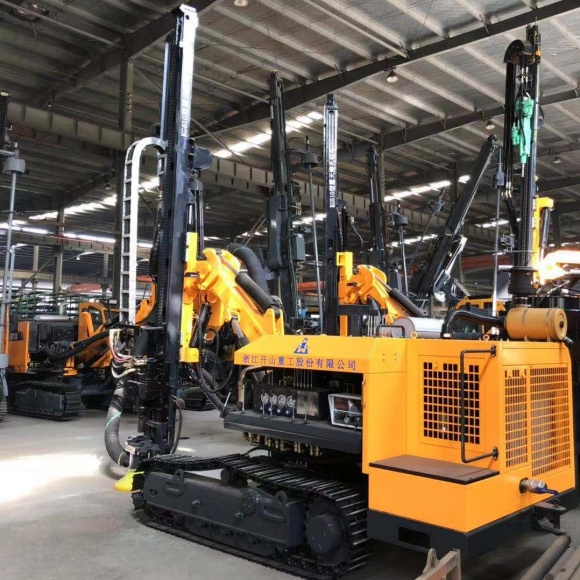

1 Surface down-the-hole drill Model:KG610
Engine:Cummins QSB3.9-C125,92kw
Supplied drilling tool:
DTH Hammer:K50mm
drill bit : 152 mm*1piece
Drill rods : Ф89* mm *3 meters* 7 pieces
Hose:51 mm *20 meters *2 rolls
Tool box:1 unit		 1 set

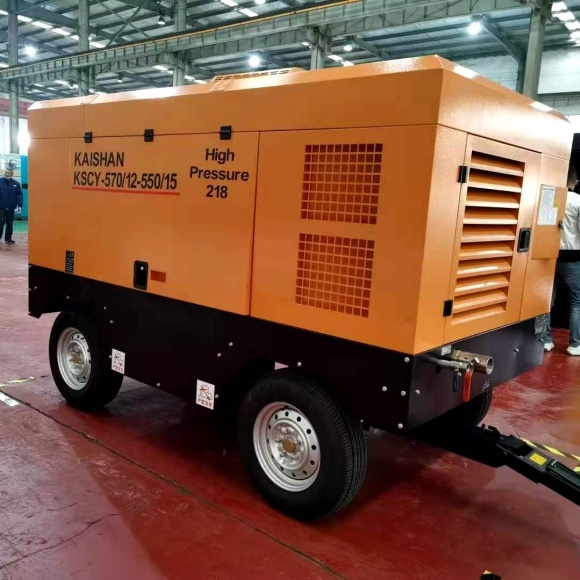

Mobile air compressor
Model: KSCY-550/15-570/12
diesel engine: Yuchai 180 HP
Air delivery:16.2-15.5m³/min;
Exhaust pressure:12-15bar		 1 set

Option 2

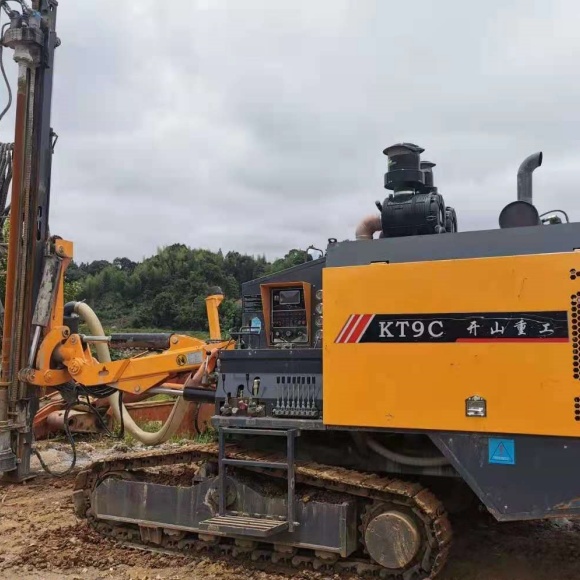

2 Integrated DTH Drilling Rig
Mining Drill Rig Kaishan KT9C,
▲Drill Rig:
Diesel engine:Yuchai 295Kw
Supplied drilling tool:
DTH Hammer:5 Inch impactor *1 piece
drill bit : 152mm*1piece
Drill rods : Ф76* mm *3 meters* 7 pieces		 KT9C integrated drilling rig 1 set
