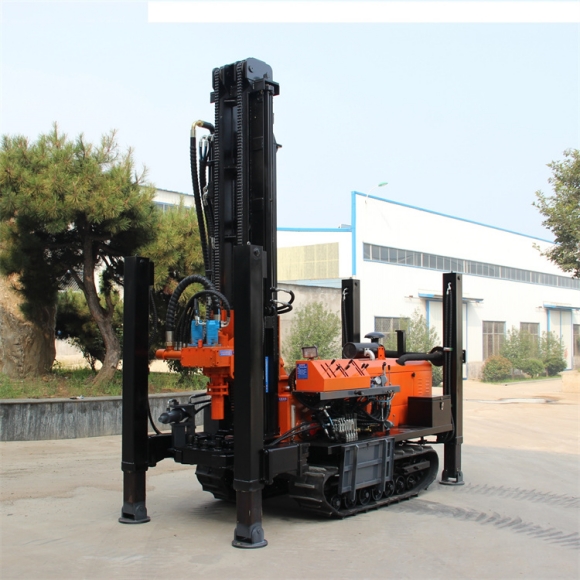

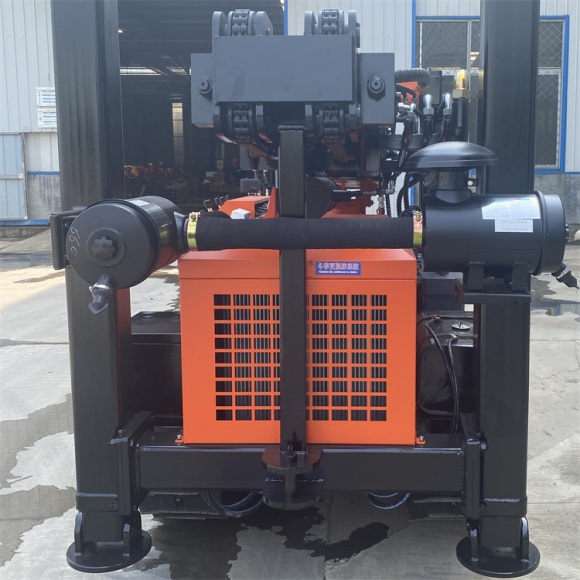

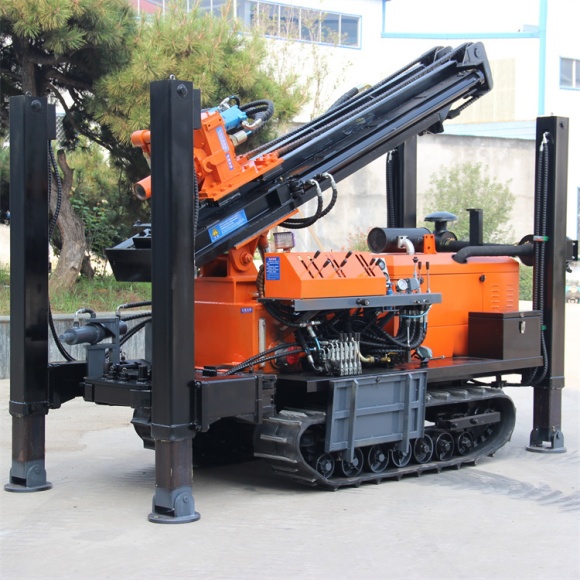

180m Water Well Drilling Rig Solutions

Designed for water, irrigation, industrial, geothermal and dewatering wells, our 180m multi-purpose drill rig handles clay, gravel and hard rock for cost-effective, reliable drilling.



Choose crawler,rubber crawler, wheeled or truck-mounted chassis for varied jobs. It supports DTH drilling (with air compressor for hard rock) and tricone rotary drilling (with mud pump for loose overburden).



Multi-functional design cuts investment cost and boosts productivity, ideal for drilling contractors.



Applications: Agricultural irrigation, drinking water, industrial water supply, geothermal, dewatering & monitoring wells

Get a Quote Send E-mail

0086 18595738083

Products

WE WILL CONTACT YOU WITHIN 24 HOURS

Option 1



▲ Option 1: Air compressor and matched drill tools(Hard Rock)
Qtys
3 Air compressor KSZJ-18/17A
KAISHAN Brand
FAD:18m³/min,Work Pressure:17bar,Diesel Engine:Yuchai 162KW/220HP		 screw air compressor 1 set
4 Drill Hammer HD45 1 pc
5 Rock Drill Bit  4inches/105mm-HD45 1 pc
6 Rock Drill Bit  6inches/150mm-HD45 1 pc
7 Drill Hammer adapter, connect drill pipe 76 and drill hammer HD45 1 pc
8 Air Hose Φ51*2P*20m,Connect drill rig and air compressor 2 rolls

Option 2



▲ Option 2: Mud Pump and matched drill tools (Soft Rock)
9 Mud Pump BW250
Diesel Engine:
Changchai ZS1110		 1 set
10 Tricone bit 4 inches105mm,with adapter,IADC537 1 pc
11 Tricone bit 6 inches150mm,with adapter,IADC537 1 pc
Technical specifications of BW250 mud pump
Type Horizontal three cylinder reciprocating single acting
piston pump
Stoke(mm) 100
cylinder diameter(mm) 80 65
pump speed 200 116 72 42 200 166 72 42
Flow 250 145 90 52 166 96 60 35
Pressure 2.5 4.5 6 6 4 6 7 7
Out pipe diameter 51MM
inlet pipe diameter 76MM
power 15KW
shape size 1560*995*650MM
weight 650KG

Export and Load Container
