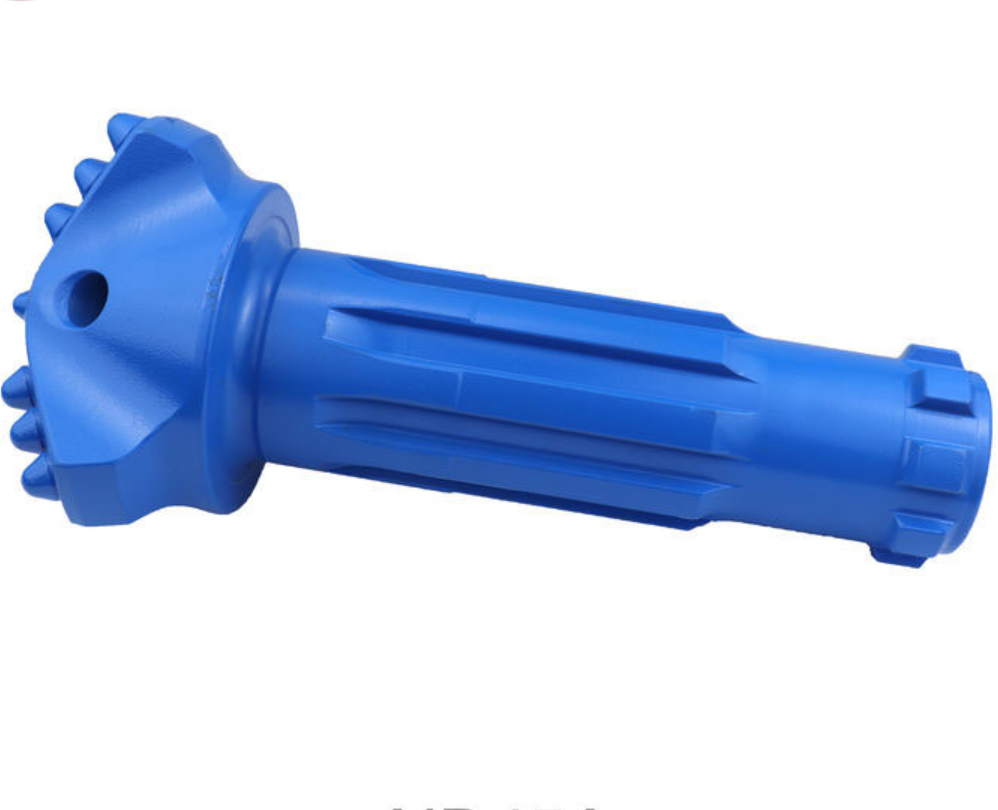

1.Equipped with wear-resistant tungsten carbide teeth, excellent cutting performance in soil, sand, clay and weathered rock, effectively prevent bit sticking.
2.Optimized three-wing flushing channel design, smooth cuttings discharge, greatly improve drilling efficiency for reverse circulation drilling projects.
3.Compatible with DTH hammer & concentric casing system, ideal for borehole drilling, casing follow-up drilling in unstable and easy-collapse formations.
4.Wide range of optional diameters and thread connections, widely used in water well drilling, solar pile foundation, anchor hole and geotechnical engineering.
5.Integrated high-strength bit body, stable operation with low vibration; cost-effective choice for soft & medium formation drilling.
|
Specificction
|
Head Dia.(mm)
|
Port Holes
|
Button Type
|
Gauge Buttons
|
Front Buttons
|
|
130
|
3
|
Ballistic
|
9*Φ14
|
3*Φ13 | |
|
140
|
3
|
Ballistic
|
9*Φ14
|
3*Φ14
|
|
|
150
|
3
|
Ballistic
|
9*Φ14
|
3*Φ14
|
|
|
152
|
3
|
Ballistic
|
9*Φ15 | 3*Φ15 | |
|
165
|
3
|
Ballistic
|
9*Φ15
|
3*Φ15
|
|
|
180
|
3
|
Ballistic
|
9*Φ15
|
3*Φ15
|
|
|
180
|
3
|
Ballistic
|
9*Φ16
|
3*Φ15
|
|
|
190
|
3
|
Ballistic
|
9*Φ16
|
4*Φ15
|
|
|
203
|
3
|
Ballistic
|
9*Φ16
|
4*Φ15
|
|
|
219
|
3
|
Ballistic
|
12*Φ16
|
4*Φ15
|
|
|
254
|
3 | Ballistic |
15*Φ16
|
4*Φ15
|
