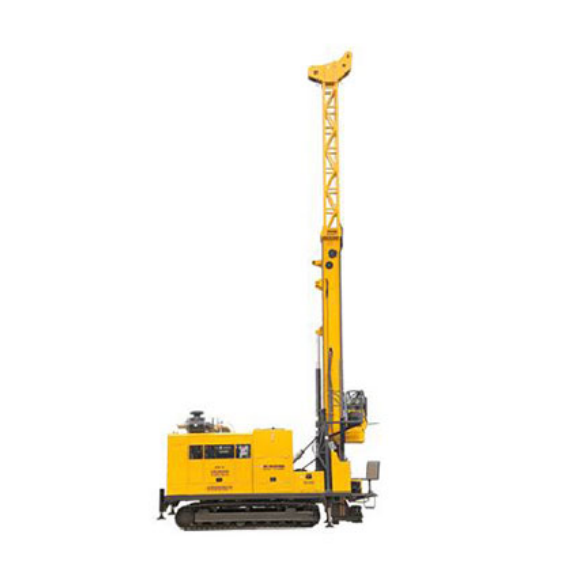

1. Main hydraulic components are selected from internationally renowned brands.
2. Drill head adopts a chuck type structure, with lateral translation function and three gear stepless speed adjustment.
3. Drill head feeding adopts double-speed driving device for the chain of the oil tank.
4. Mast adopts oil cylinder lifting and lowering, foldable, convenient for transportation and storage, with sliding grounding function.
5. Hydraulic system adopts load sensitive control, and the rotation of drill head spindle is driven by dual-motor with closed loop hydraulic circuits, with high operation efficiency and high torque.

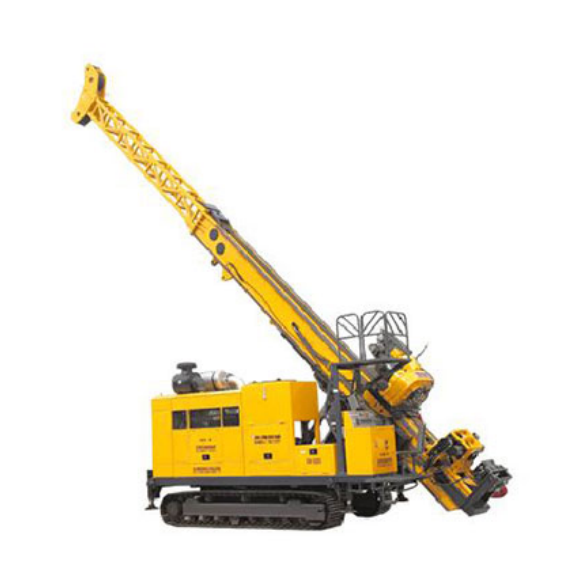

6. Mast is equipped with centering guide in its upper and lower part for inclined hole construction conveniently. A hydraulic clamp is adopted at the position above the drilling hole.
7. Equipped with two layer working platforms.
| Item | Unit | Parameters | Remarks | |
| Drilling Capacity | NQ Rod | m | 3000 | Φ69.9mm |
| HQ Rod | 2400 | φ88.9mm | ||
| PQ Rod | 1700 | Φ114.3mm | ||
| Diesel Engine | Model | / | QSL8.9-C360 | Cummins |
| Rated Power | kW | 264 | ||
| Rated Speed | r/min | 2100 | ||
| Drill Head | Max. Rotary Speed | r/min | 1100 | |
| Max. Torque | N·m | 8000 | ||
| Speed Range | r/min | 254～508 | Grade I | |
| 448～897 | Grade Ⅱ | |||
| 526～1100 | Grade Ⅲ | |||
| Corresponding Torque | N·m | 8000～3611 | Grade I | |
| 4091～2046 | Grade Ⅱ | |||
| 3486～1743 | Grade Ⅲ | |||
| Spindle I.D. | mm | 121 | ||
| Translational Distance | mm | 695 | ||
| Feeding Mechanism | Feeding Stroke | mm | 4700 | |
| Max. Lifting Capacity | kN | 295 | ||
| Max. Feeding Power | kN | 152 | ||
| Mast | Total Height | m | 14.7 | |
| Adjusting Angle | ° | 0～90 | ||
| Drilling Angle | ° | 45～90 | ||
| Sliding Stroke | mm | 1100 | ||
| Main Hoist | Single-Wire Hoisting Capacity | kN | 120 | 1st Layer |
| Lifting Speed | m/min | 44 | 1st Layer | |
| Length of Steel Rope | m | 60 | ||
| Dia. of Steel Rope | mm | 22 | ||
| Wire-line Winch | Single-Wire Hoisting Capacity | kN | 15 | 1st Layer |
| Lifting Speed | m/min | 130 | 1st Layer | |
| Length of Steel Rope | m | 2500 | ||
| Dia. of Steel Rope | mm | 8 | ||
| Mud Pump | Model | / | BW-320 | |
| Max. Displacement | L/min | 320 | ||
| Max. Pressure | MPa | 10 | ||
| Orifice Clamp | Applicable Rods | mm | BQ、NQ、HQ、PQ | |
| Via Diameter | mm | Φ154 | ||
| Crawler Chassis | Traveling Speed | km/h | 1.5～2.5 | |
| Climbing Capacity | ° | ≤30 | ||
| Overall Dimensions (L×W×H) | Working Dimensions | mm | 6020×2475×14745 | |
| Transport Dimensions | mm | 8165×2530×3030 | ||
| Weight | Main Machine | t | 25 | |
