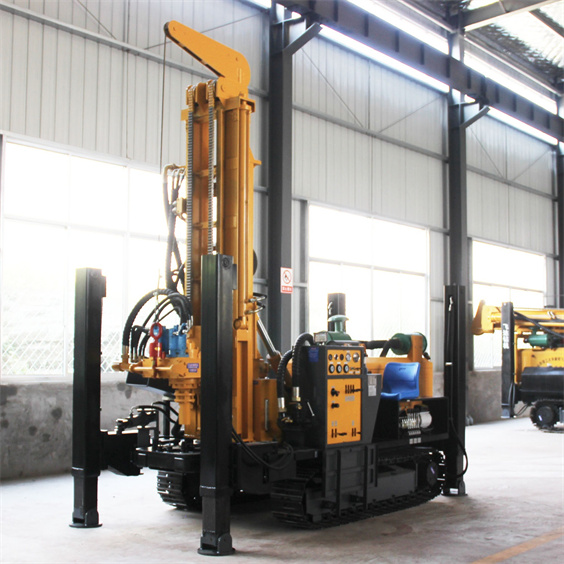

300m Water Well Drilling Rig Solutions

Designed for water, irrigation, industrial, geothermal and dewatering wells, our 300m multi-purpose drill rig handles clay, gravel and hard rock for cost-effective, reliable drilling.



Choose crawler, wheeled or truck-mounted chassis for varied jobs. It supports DTH drilling (with air compressor for hard rock) and tricone rotary drilling (with mud pump for loose overburden).



Multi-functional design cuts investment cost and boosts productivity, ideal for drilling contractors.



Applications: Agricultural irrigation, drinking water, industrial water supply, geothermal, dewatering & monitoring wells

Get a Quote Send E-mail

0086 18595738083

Products

WE WILL CONTACT YOU WITHIN 24 HOURS

Option 1

▲ Option 1: Air compressor and matched drill tools(Hard Rock)
3 Air compressor KSZJ-29/23-32/17,
Kaishan
FAD: 23-32 m³/min, Work Pressure: 23-32 bar
Diesel Engine: Yuchai 294 kW/400 HP		 air compressor for well drilling 1 set
4 Drill Hammer HD65 1 pc
5 Rock Drill Bit  152mm-HD65 1 pc
6 Rock Drill Bit  203mm-HD65 1 pc
7 Drill Hammer adapter, connect drill pipe 89  and drill hammer HD65 1 pc
8 Air Hose Φ51*2P*20m,Connect drill rig and air compressor 2 rolls

Option 2

▲ Option 2: Mud Pump and matched drill tools (Soft Rock)
9 Mud PumpBW450
Motor Diesel:
Changchai L28M		 1 set
10 Tricone bit  6inches152mm,with adapter,IADC537 1 pc
11 Tricone bit 8 inches203mm,with adapter,IADC537 1 pc

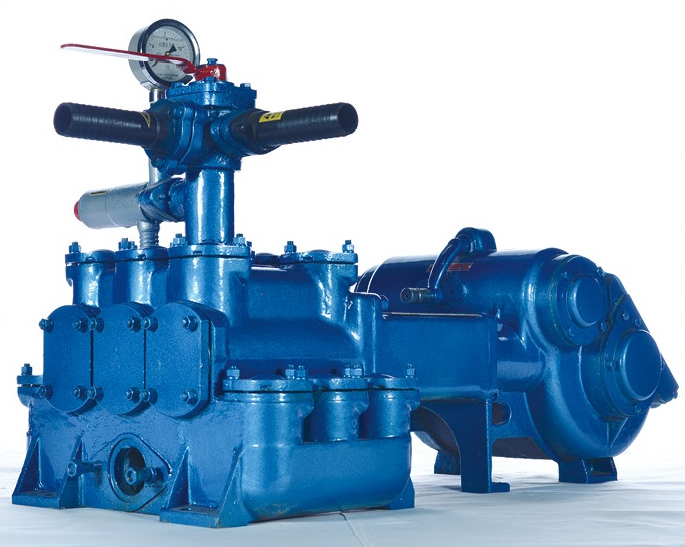

Technical specifications of BW450 mud pump
Type Horizontal three cylinder reciprocating single acting
piston pump
Stoke(mm) 85
cylinder diameter(mm) 100
pump speed 170 115
Flow 450 350
Pressure 1.2 2
Out pipe diameter 51MM
inlet pipe diameter 89MM
power 18.5KW
shape size 1350*820*1040MM
weight 540KG

Export and Load Container
