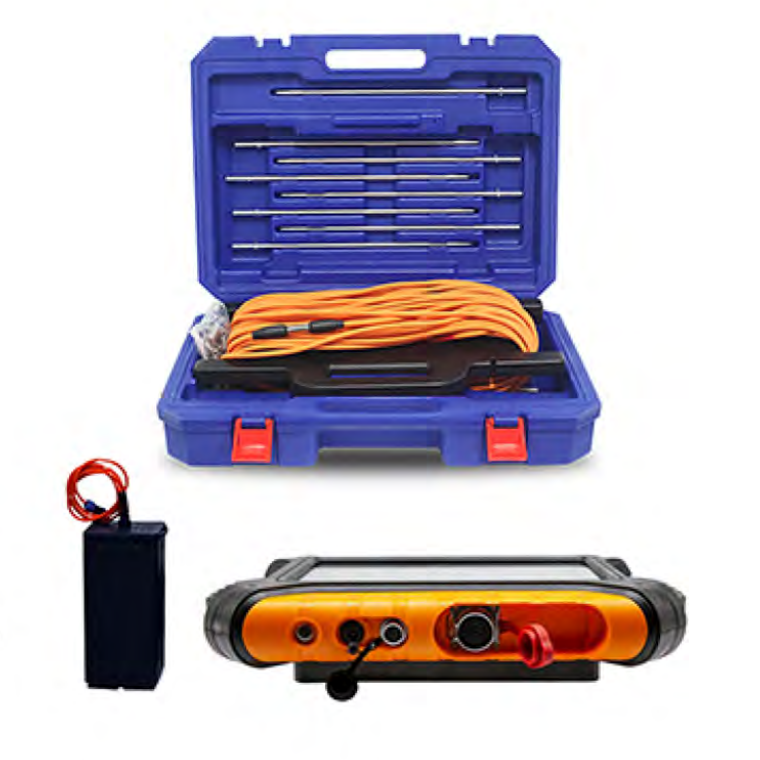

1.The 16 channel high-density MT electrical instrument adopts 1-16 channels forsimultaneous input measurement, which solves the defect of MT field sourcechanging at any time and obtains stable field source.
2.Breaking through the depthlimit of traditional high-density electrical method instrument. This instrumentoptimizes and upgrades the traditional MT electromagnetic method, the number ofchannels & electric field & electromagnetic field measurement mode is optional.
3.It can also be equipped with a high-performance electromagnetic probe to dotwo-magnetic and two-electric MT measurement.
| Model | ADMT-200AX-16D | ADMT-500AX-16D | |||
|
Max Depth
|
≤180m
|
≤500m | |||
|
Scan Interval
|
5m
|
||||
|
Channel Optiona
|
1-14 channels
|
||||
|
Sensing Mode
|
MN/TT
|
||||
|
Frequency Range
|
1-8000HZ
|
||||
|
Depth layering
|
10-100
|
||||
|
Discrim
|
0.01mV±2%
|
||||
|
Sampling Time
|
40-3600s
|
||||
|
Connections
|
Serial port,Wifi,Bluetooth4.0,USB
|
||||
|
Resolution
|
0.001mV±2%
|
||||
|
OS
|
Android 6.0.1
|
||||
|
CPU
|
ARM Cortex-A7 8 Core CPU 2.0Hz
|
||||
|
GPU
|
OpenGL ES 2.0
|
||||
|
Main Function
|
Depth optional, real-time 2D/3D drawing,battery can be removable.
|
||||
|
Battery
|
900mA/H
|
||||
|
Host Weight
|
＜3kg
|
||||
