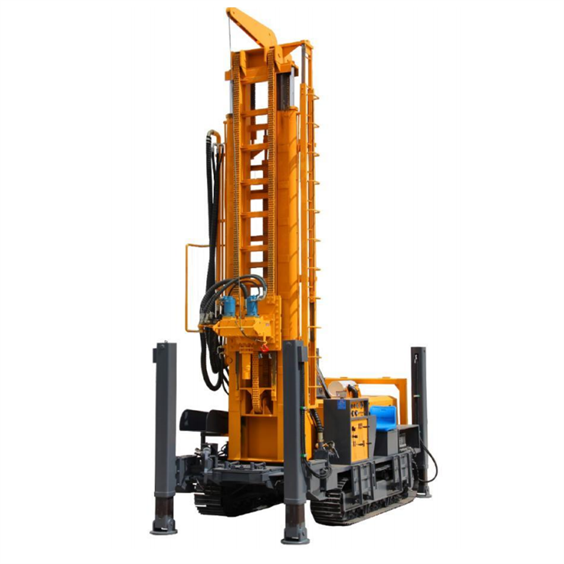

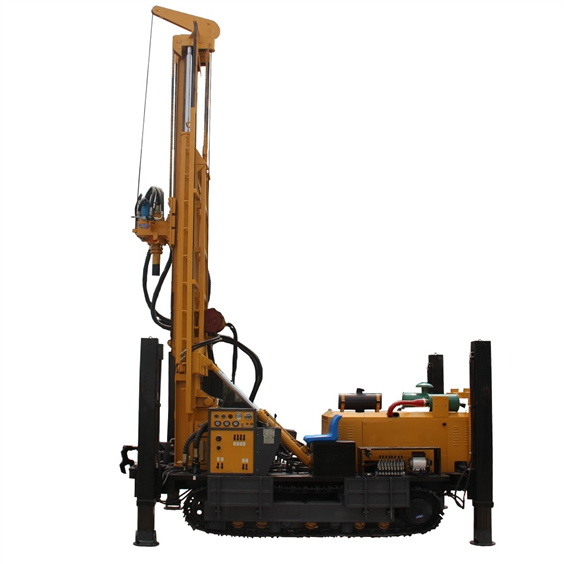

CNSW800C 800m Depth Water Well Drilling Rig Steel Crawler Type
Rotary Head
Double hydraulic motor,Rotary Speed from 45rpm to 140rpm, Rotary Torque 9000-14000N.m. High and adjustable torque meets demanding deep water well drilling, suitable for various rock formations.
Winch
Winch Lifting Force up to 2T.It is easy to lift drill rod and hammer,and very convenient to un-loading drill rod and rock hammer
Powerful Drill Boom
Composite boom, double hydraulic oil cylinder,long stroke,large tonnage.Feed Stroke up to 6.6m,used drill rod 1-6m. Supports stable feeding for deep-hole water well drilling
Operation Valve and Panel
The operation panel and joystick are in the same interface,it is simple and easy to operate.
Build in Welder
Integrated welder for convenient casing pipe welding and on-site repair work. It can also serve as site lighting.
Hydraulic Cylinder
It is a mini hydraulic cylinder,it is easy to load and un-load drill rod,drill hammer.
Hydraulic Leg with Swing Arm Cylinder
Hydraulic Leg stroke up to 1.7m height,it is easy self-loading on truck. The powerful hydraulic cylinder is very well to fix the water well drill rig.
Stronger Steel Crawler
Steel crawler chassis adapts to complicated field terrain and harsh working conditions with longer service life. Variable speed control enables easy movement, turning and climbing on construction sites.
| Model# | *CNSW800C* |
| Diesel Engine | Cummins 194kw /264 HP |
| Max Drilling Depth | 800m/2625ft |
| Drilling Dia. | 105-400mm(4 1/8″-15 3/4″) |
| Working Pressure | 1.25-7.0MPa(181-1015Psi) |
| Air consumption | 15-60m³/min(530-2119cfm) |
| Feed Stroke | 6.6m/21.7ft |
| Drill Rod Length | 1-6m/3.3-20ft |
| Drill Rod Dia. | Φ76,89,102,114,127mm |
| Lifting Force | 36T |
| Fast Lifting Speed | 20m/min |
| Fast Forwarding Speed | 40m/min |
| Rotary Torque | 9000-14000N.m |
| Rotary Speed | 45-140rpm |
| Winch Lifting Force | 2T |
| High Leg Stroke | 1.7m/5.6ft |
| Max.Wide of Leg | 2.95m/9.7ft |
| Drilling Efficiency | 15-35m/h |
| Walking Speed | 2.5km/h |
| Climbing Capacity | 30° |
| Weight | 13200kgs |
| Dimension | 6300×2300m×2950mm |
★ Optional:
Cummins Diesel Engine,Mud pump,Water-air quick valve,Adjustable rotary head,Water inlet tee,Extubation machine two-way valve,Change the hydraulic leg stretch,the hydraulic oil radiating separately,Add rubber block.
