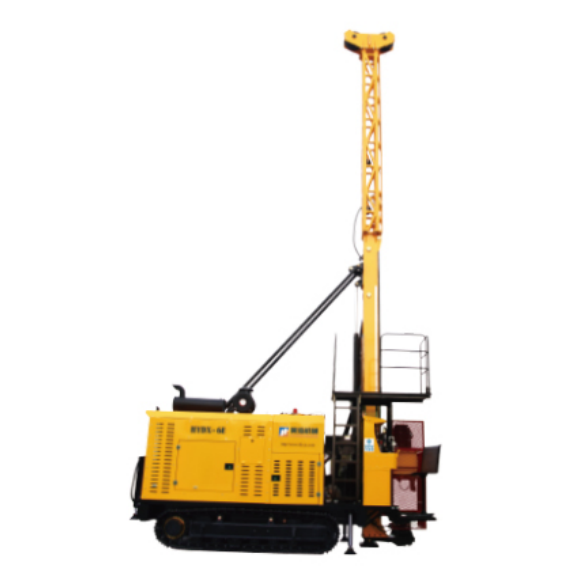

1. The main hydraulic components are selected from internationally renowned brands;
2. The power head adopts a card disc structure, with lateral translation function and two mechanical speed changes, both of which are stepless speed regulation;
3. The drilling rig adopts the direct pushing method of oil cylinder for feeding;
4. The mast adopts a hydraulic cylinder for lifting and lowering, which is foldable, convenient for transportation and storage, and has a sliding grounding function;
5. The hydraulic system adopts load sensitive control, and the power head rotation adopts a dual motor closed circuit, which has high working efficiency and large torque;
6. The mast is equipped with upper and lower straightening devices for inclined hole construction, and the hole opening is equipped with hydraulic clamps;
7. Equipped with a two-level work platform;
8. Users can choose from tracked, platform, or vehicle mounted models according to their needs.
| project | unit | parameter | notes | |
| Drill depth | BQ drill pipe | m | 2000 | Φ55.6mm |
| NQ drill pipe | 1600 | Φ69.9mm | ||
| HQ drill pipe | 1300 | Φ88.9mm | ||
| PQ drill pipe | 1000 | Φ114.3mm | ||
| Power head capability | speed | r/min | 0～157～359 | |
| 0～509～1150 | ||||
| MAXIMUM TORQUE | N·m | 6400 | ||
| Vertical shaft through-hole diameter | mm | 121 | ||
| Maximum lifting force | kN | 240 | ||
| Maximum feed force | kN | 120 | ||
| Diesel engine | Rated power | kW | 179 | cummins 6CTA8.3-C240 |
| Rated speed | r/min | 2200 | ||
| Mast | Total height | m | 10.8 | |
| Adjust angle | ° | 0～90 | ||
| Drilling angle | ° | 45～90 | ||
| Provide progress | mm | 3800 | ||
| Mast sliding stroke | mm | 1100 | ||
| Main winch | Single rope lifting force | kN | 120 | Tier 1 |
| lifting speed | m/min | 44 | ||
| Wire rope diameter | mm | 22 | ||
| Wire rope length | m | 60 | ||
| Auxiliary winch | Single rope lifting force | kN | 12 | Tier 1 |
| lifting speed | m/min | 130 | ||
| Wire rope diameter | mm | 6 | ||
| Wire rope length | m | 1800 | ||
| mud pump | Maximum displacement | L/min | 250 | 2.5MPa/h |
| Maximum pressure | MPa | 6 | 52L/min/h | |
| Walking speed | km/h | 1.5~2.5 | ||
| Gradeability | ° | 30 | ||
| Ground pressure | MPa | 0.14 | ||
| Weight | t | 13.5 | ||
| External dimensions | Working Size | mm | 4635×2240×10820 | (Length×Width×Height) |
| Transport dimensions | mm | 5780×2240×2500 | ||
