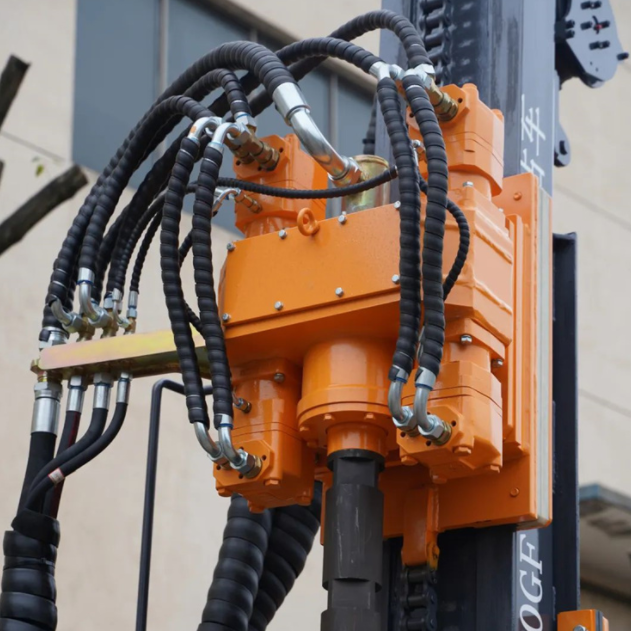

Powerful Rotary Head
Lifting chain adopts 28A roller chain, box type large section steel guide rail, to ensure that it has enough strength, one time can push 4 meters.
Strong Heavy Duty Guide Rail
The gyrator is equipped with four sets of hydraulic rotary motors, and adopts high modulus-straight teeth and large reduction ratio transmission to provide the rotary torque of up to 12000Nm for the drilling rig. It is suitable for the construction of foundation pile holes with large aperture
Frame Winch
Equipped with 1 ton frame winch for feed(optional), convenient for hoisting drill bit and drilling tool,impact device, etc. When used on large slopes, you can choose to use 8-ton frame winch for rig(optional) to ensure sufficient traction when using the drill rig.
Diesel Engine
Equipped with 86KW diesel engine, efficient desert-air filter,the maximum hole diameter can reach 500mm.

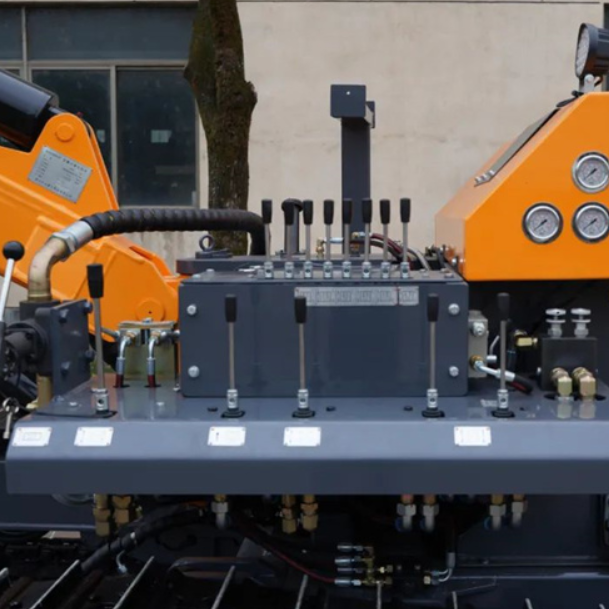

Oil Cylinder & Hydraulic System
Optimize oil cylinder,upgrade hydraulic system.The hydraulic cylinder is more reliable, the system flow is increased.Hydraulic system adopts high pressure cast iron pump.
Crawler
Widened and thickened walking track plate; Add track leveling cylinders.
| Specifications | |
| Model # | *KG500GF* |
| Weight | 7500kgs |
| Dimension | 6680×2450m×2710mm |
| Diesel Engine | Yuchai DKC9G0 (86KW/2200rpm) |
| Drilling Hardness | f=6-20 |
| Drilling Diameter | Φ185-500mm(7″-19 1/2″) |
| Depth of Economical Drilling | 25m / 82ft |
| Air Consumption & Pressure | 15-45m³/min(530-1590cfm)/1.0-2.4Mpa |
| DTH Hammer | Standard K8 (Optional:5′-12″) |
| Drilling Rod | Standard Φ89X4000mm (Optional:Φ102/127X4000mm) |
| Drilling Bit | Standard Φ185mm-K8 (Optional,Φ185-500mm) |
| Rotary Speed | 45-80rpm |
| Rotary Torque (Max.) | ≧12000N.m(Max.) |
| Lifting Force/ | 25KN |
| Method of Feed | Motor +Roller Chain |
| Feed Stroke | 4275mm |
| Traveling Speed | 0-3km/h |
| Climbing Capacity | ≦25° |
| Ground Clearance | 325mm |
| Pitch Angle of Carriage | 165° |
| Swing Angle of Carriage | Lef 50°,Right 50°,Total 100° |
| Pitch Angle of Drill Boom | Down 50°,Up/ 25°,Total 75° |
| Swing Angle of Boom | Left 30°,Right 30°,Total 60° |
| Leveling Angle of Track | ±10° |
| Compensation Length of Carriage | 1200mm |
| Frame winch for feed | 1 Tons |
| Frame winch for rig | 8 Tons |
