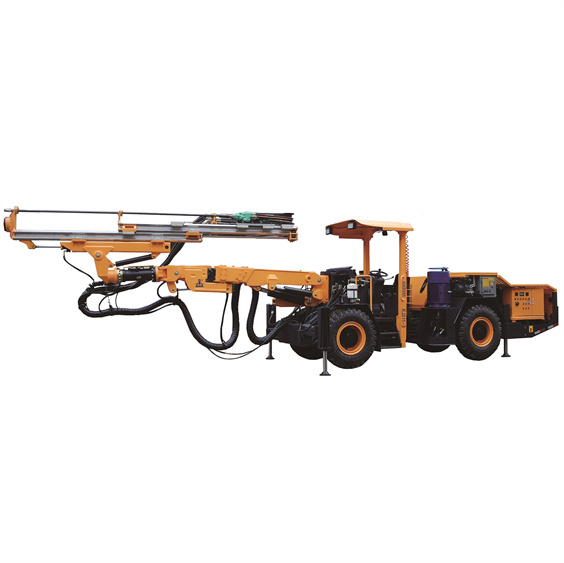

KJ311 Double Layer Bean Type,Tunnel Jumbo Drilling Rig

KJ311 Double Layer Bean Type,Tunnel Jumbo Drilling Rig

Features:

KJ311 Hydraulic Tunneling Drilling Rig（Double Layer Beam Type) is suitably qualified for the drilling of hard rock mine whose section falls in the range of

12－35 square meters. It is specially designed for the rock bolt and is capable of drilling the 2.2-meter-deep rock bolt in the 4-meter-high tunnel.

The firm flexible boom is capable of optical coverage of the section; 360° rotation and self-leveling beam make drill positioning easy;The arm can also be used for the drilling of lateral cross-cut and rock bolting;

The drilling rig provides a good view for the operator; balanced layout and the articulated chassis of four-wheel drive ensure the flexible,

fast and safe driving in the narrow tunnel;

The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave

and drilling speed and reduce the consumption of drilling tools and make it in good condition;

Considerable space and automatic functions enable the driver to concentrate on drilling in a safe, fast and accurate manner;

All the relevant parts are kept in good protection, meanwhile maintenance easily.
