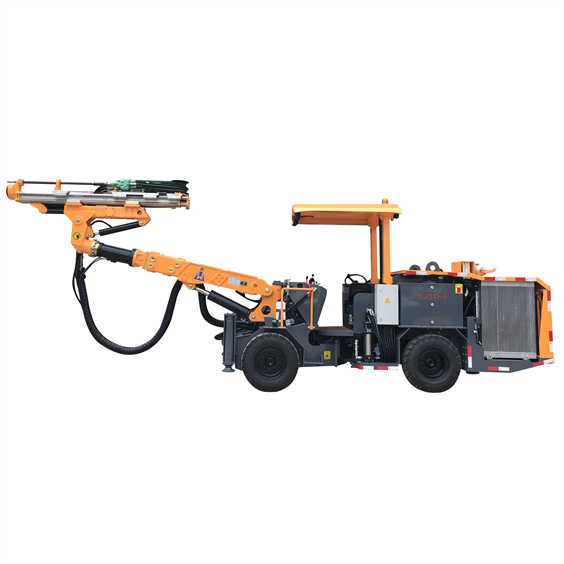

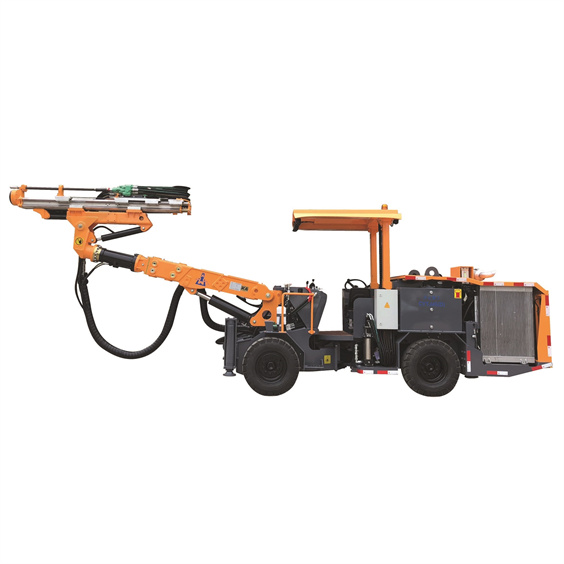

KJ311(Second crushing) Top Hammer Tunnel Jumbo Drilling Rig
Features:
KJ311(Second crushing) Hydraulic Tunneling Drilling Rig is specially designed for short time and multi-station rock drilling. The drill ring is powered by diesel engine and has air compressor on board. It uses water tank for water supply and does not need extemal water, air and power supply. The drill rig can realize rapid rock drilling and rapid sites transfer, especially suitable for processing large pieces of ore in which mines that using natural block caving method.

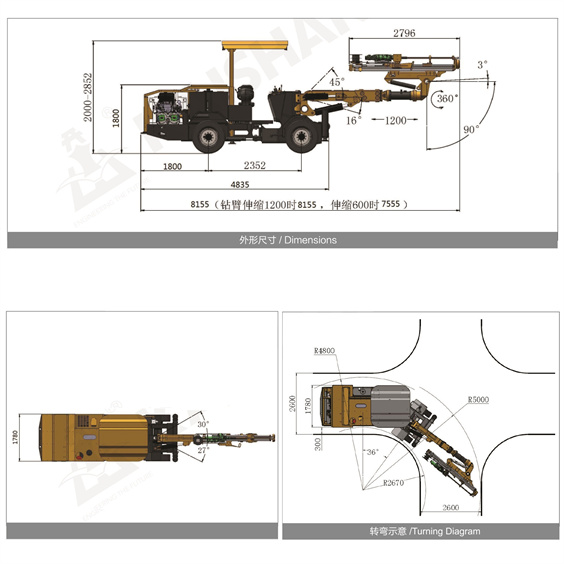

| Dimensions and weight | Air & water system | |||||||||
| Length | 8200mmmm | Air compressor | CP9952 | Oil Consumption of lubrication | 180-250g/h | |||||
| Width | 1780mm | Capacity of air compressor | 0.3m³/min | |||||||
| Height | 2000/3000 mm | Pressure | 3-5bar | Capacity of water pump | 3m3/h | |||||
| Weight | Appr. 12000㎏ | Device of shank lubrication | Electronic pulse lubrication pump | |||||||
| Tramming speed on flat ground | 10km/h | |||||||||
| Maximum climbing capacity | 25％(14°) | |||||||||
| Chassis | ||||||||||
| Diesel engine | Cummins QSB3.9-C125/93KW，2200rpm | Tires | 11.00-20 | |||||||
| Safety protection | Exhaust purification | Exhaust catalyst | Steeringmechanism | Articulated steering: ±40° | ||||||
| Noise level | ＜100dB(A) | |||||||||
| Lifting safety roof | Meet the requirements
of FOPS and ROPS |
Drive system | Closed hydraulic system for four-wheel driving | Travelling braking | Two-circuit hydraulic brake | |||||
| Swing angle | Swing of rear axle: ±6° | Parking braking | Wet multidisc brake of reducer | |||||||
| Fuel tank | 170L | |||||||||
| Drilling system | Drill boom | |||||||||
| Rock drill | 1×HC50/R38 | Model of drill boom | K25 | |||||||
| Impact power | 13kW | Form of drill boom | Telescopic | |||||||
| Impact flow | 105L/min | Boom extension | 1200mm | |||||||
| Impact pressure | 130bar | Electric hydraulic power unit | ||||||||
| Maximum rotary pressure | 150bar | Impact /Feed/ Positioning | Axial variable displacement piston pump | |||||||
| Impact Frequency | 62 Hz | |||||||||
| Torque | 325Nm | Rotation | Gear pump | |||||||
| Hole diameter | Φ32-76mm | Filter fineness | 10μ | |||||||
| Beam rotation | 360° | Hydraulic oil tank | 240L | |||||||
| Feed extension | 850mm | Hydraulic cooler | Water cooler | |||||||
| Drilling depth | 1000mm | 1500mm | ||||||||
| Drill rod | R38-H35-R32-1350 | R38-H35-R32-1850 | ||||||||
