500mm Hole Diameter Photovoltaic Drilling Rig Solutions

Complete supporting solutions of photovoltaic drilling rigs for vertical hole drilling.

Adopt DTH drilling mode for hard rock & large-diameter photovoltaic foundation piles, widely applicable to blast hole drilling on construction sites including hydropower projects, open-pit mines, road construction and tunnel engineering.

Equipped with hydraulic drilling system for soil layers, matched with auger drill rods or DTH rods with three-wing bits. No air compressor required for hydraulic drilling operation.





Get a Quote Send E-mail

0086 18595738083

Products

WE WILL CONTACT YOU WITHIN 24 HOURS

Option 1

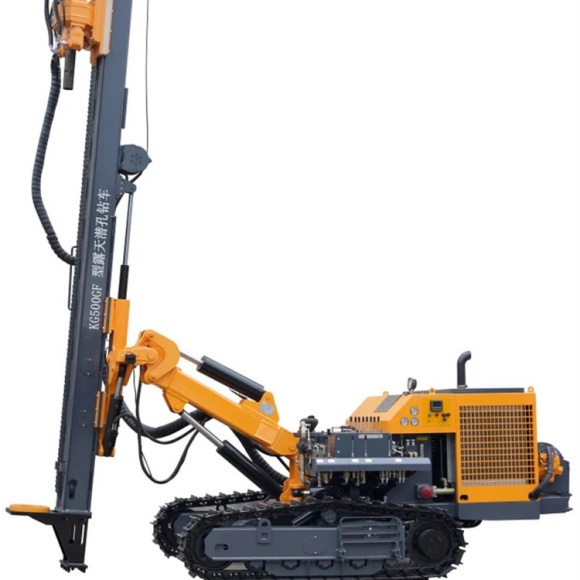

2 500GF photovoltaic drilling rig
Surface down-the-hole drill Model:KG500GF
Engine:Yuchai 86kw		 1 set
Air compressor KSZJ-29/23G
Capacity(FDA):29 m³/min,
Working Pressure:23bar
Diesel Engine：Yuchai 294 kW/400 HP		 KSZJ-29/23G air compressor 1 set
Drill Rod Φ102*1500mm 1 set
Drill Hammer HD105 1 set
Drill Hammer HD125 1 set
Drill bit size is provided according to requirements. 1 set
