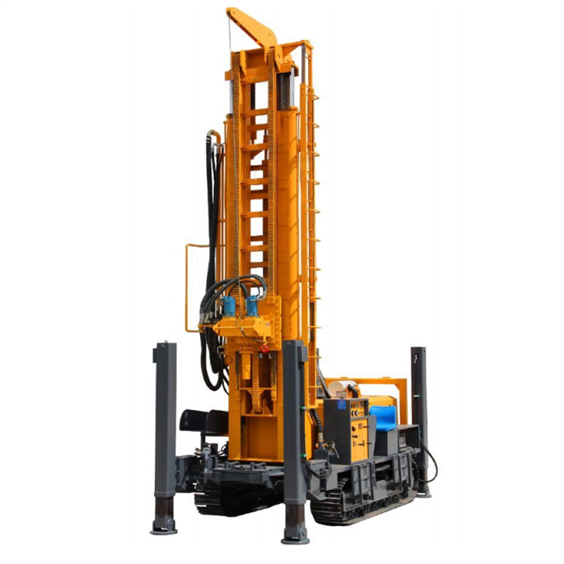

800m Water Well Drilling Rig Solutions

Designed for water, irrigation, industrial, geothermal and dewatering wells, our 800m multi-purpose drill rig handles clay, gravel and hard rock for cost-effective, reliable drilling.



Choose crawler, wheeled or truck-mounted chassis for varied jobs. It supports DTH drilling (with air compressor for hard rock) and tricone rotary drilling (with mud pump for loose overburden).



Multi-functional design cuts investment cost and boosts productivity, ideal for drilling contractors.



Applications: Agricultural irrigation, drinking water, industrial water supply, geothermal, dewatering & monitoring wells

Get a Quote Send E-mail

0086 18595738083

Products

WE WILL CONTACT YOU WITHIN 24 HOURS

Option 1

▲ Option 1: Air compressor and matched drill tools(Hard Rock)
3 Air compressor LGCG-45/25-37/35
Kaishan
FAD: 45-37 m³/min, Work Pressure: 25-35 bar
Diesel Engine: Yuchai 775 kW/1055HP		 air compressor for well drilling 2 set
4 Drill Hammer HD85 1 pc
5 Rock Drill Bit  254mm-HD105 1 pc
6 Rock Drill Bit  305mm-HD105 1 pc
7 Drill Hammer adapter, connect drill pipe 114  and drill hammer HD105 1 pc
8 Air Hose Φ51*2P*20m,Connect drill rig and air compressor 2 rolls

Option 2

▲ Option 2: Mud Pump and matched drill tools (Soft Rock)
9 Mud Pump BW750：
Power：45kw		 1 set
10 Tricone bit  10inches254mm,with adapter,IADC537 1 pc
11 Tricone bit 12 inches305mm,with adapter,IADC537 1 pc
Technical specifications of BW750 mud pump
Type Horizontal three cylinder reciprocating single acting
piston pump
Stoke(mm) 110
cylinder diameter(mm) 110
pump speed 240 166 112 78
Flow 750 505 345 235
Pressure 3 4 5 6
Out pipe diameter 51
inlet pipe diameter 89
power Mud Pump BW750：
Power：45kw
shape size 1500*890*1230MM
weight 1400KG

Export and Load Container
